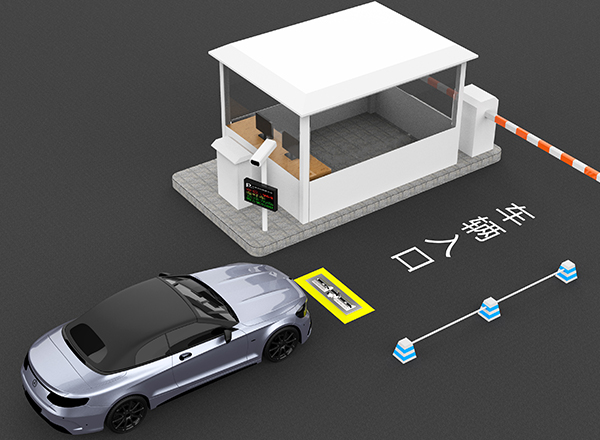

The Seenboom vehicle underbody security inspection scanning system consists of a vehicle underbody image acquisition component, an induction lighting control component, and a license plate image/It is composed of vehicle exterior image acquisition components and image display components, etc., and should be in colorCCDLinear array scanning technology imaging. When the vehicle is1~80km/hWhen the speed of the vehicle passes through the scanning device, the vehicle underbody image acquisition component of the system should be able to automatically scan and display a clear and complete image of the vehicle underbody. The total startup time of all components of the system is less than or equal to35sThe imaging time is less than1s. The vehicle underbody image resolution of Seenboom vehicle underbody security inspection scanning system≥9000The load-bearing frame of the system scanning device shell should adopt a honeycomb design to disperse pressure and enhance the compressive resistance capacity of the shellMaterial adopted30mmThick304Stainless steel plate. The whole can bear weight.50Vehicles weighing tons passed.
In terms of image display,Seenboom vehicle underbody security inspection scanning systemDepending on the length of the vehicle, the system can automatically select either the long vehicle or the ordinary image display mode. The length of the vehicle under test>8mAt this time, the image display should be in long vehicle mode. The length of the vehicle under test≤8mAt this time, the image is displayed in normal mode.The system can set blacklists and whitelists. When the license plate of a blacklisted vehicle is detected, the system can give a prompt.Seenboom vehicle underbody security inspection scanning systemIt can store blacklists and whitelists. When the color of the scanned vehicle chassis image is different from that of the normal vehicle chassis image, an auxiliary alarm box will appear in the system display part, and at the same time, the system will be accompanied by sound and light prompts. The system supports the function of scanning for two-way vehicle passage. It can scan the image under the vehicle whether driving in the forward or reverse direction. When vehicles with the same license plate number are ranked2When passing for the first time, the system display section should automatically pop up the historical image of the same license plate number that has been stored. The image should be displayed horizontally and arranged vertically, and at the same time, the system should give audible and visual prompts. Furthermore, Seenboom vehicle underbody security inspection scanning systemIt also has a license plate recognition function, and its license plate recognition rate reaches100%.
